VAOI Z505 disassembly, Installation of new hard drive

VAOI Z505 disassembly, Installation of new hard drive


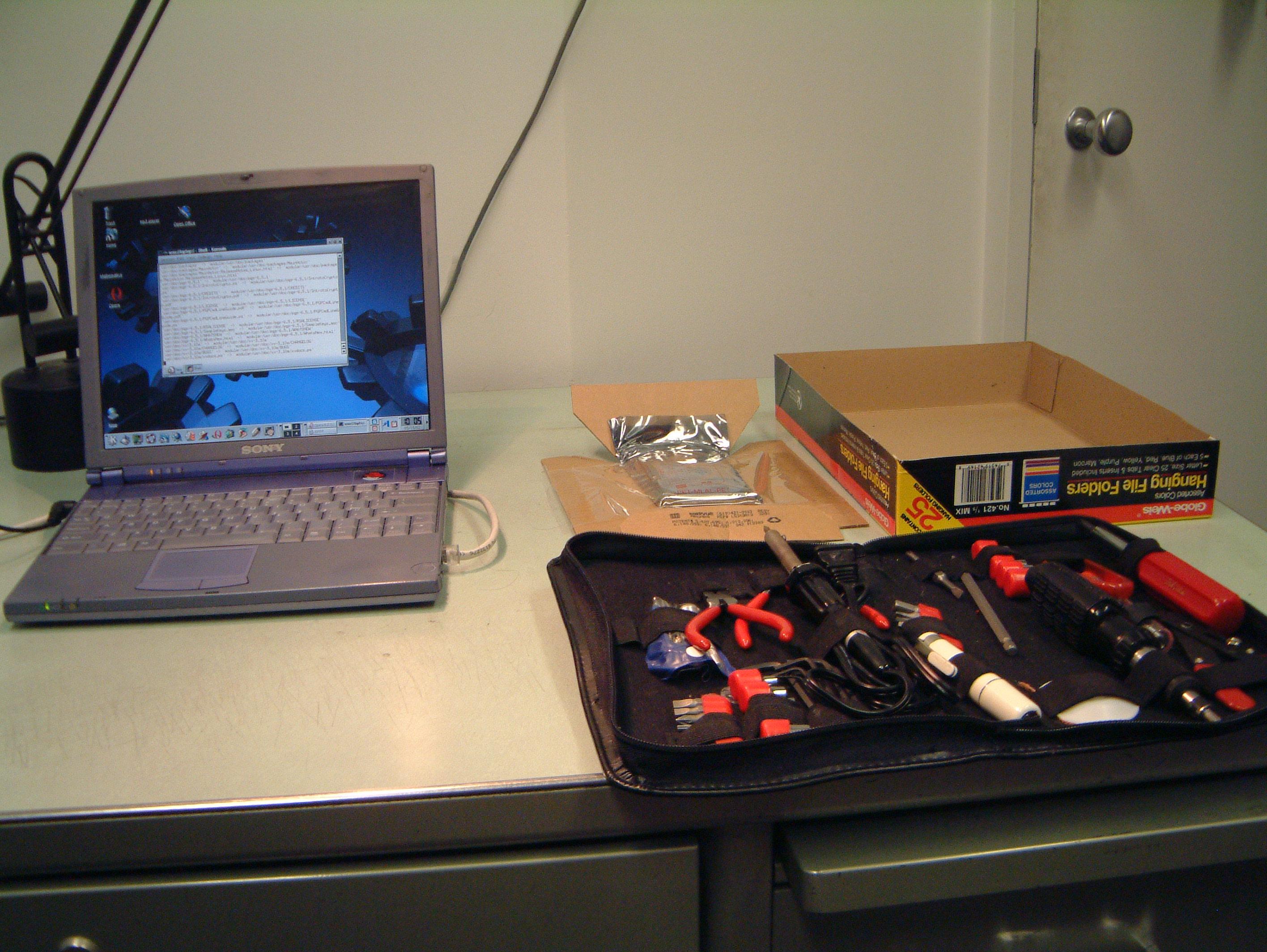

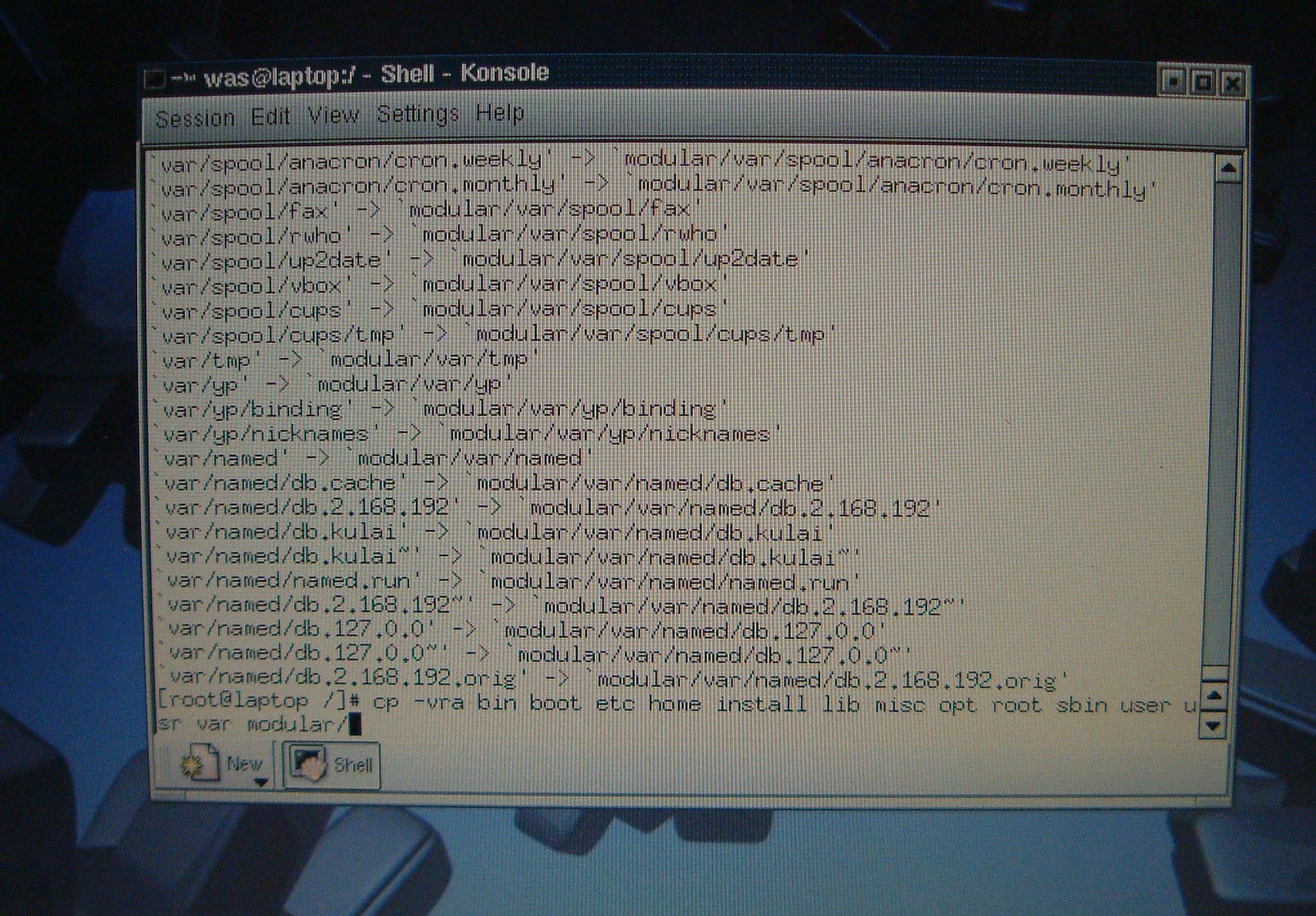

If you click on a thumbnail, a larger picture will appear in another window. If you click on 'LARGE', then a much larger picture will appear.



LARGE

LARGE

LARGE

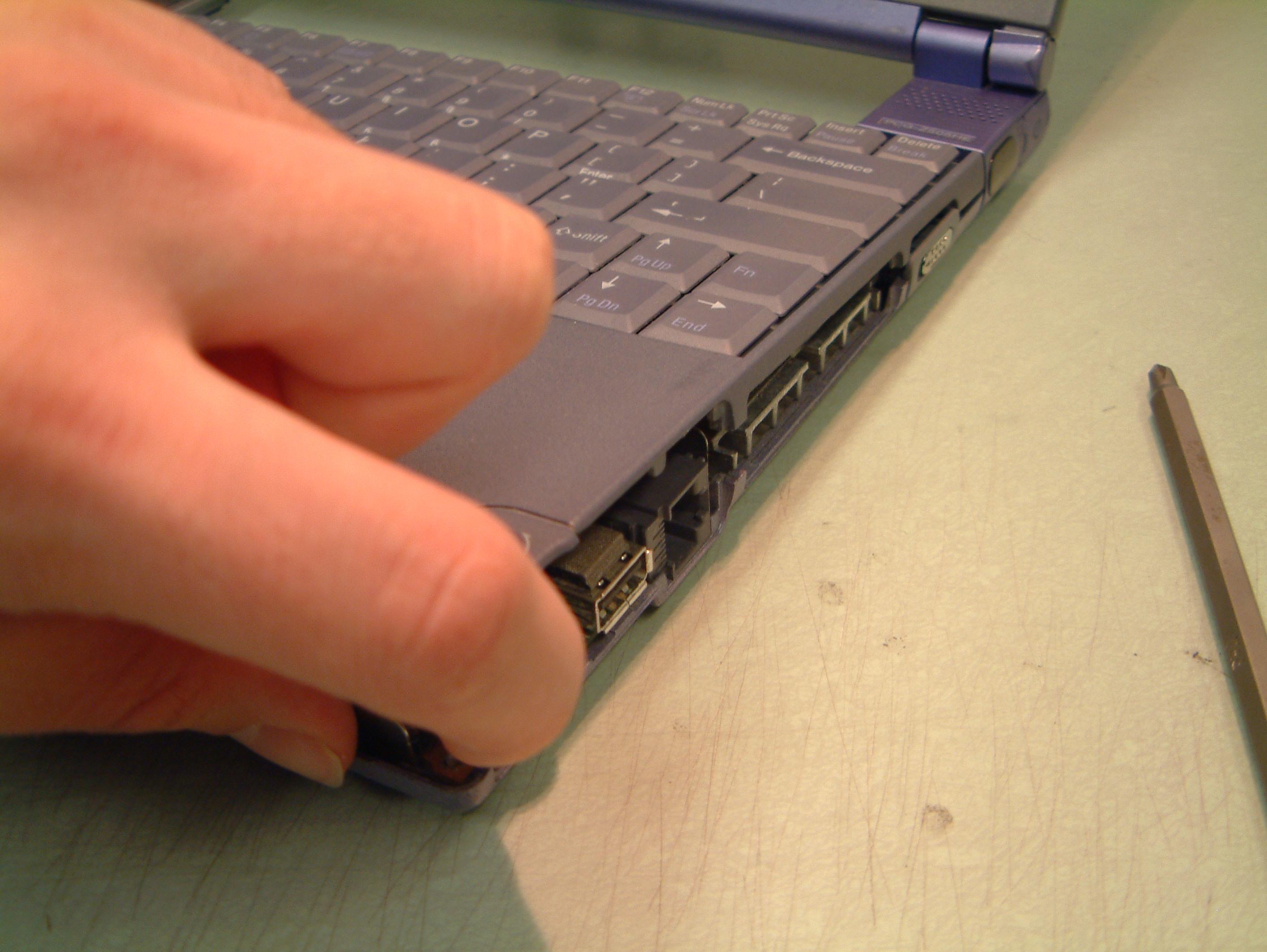

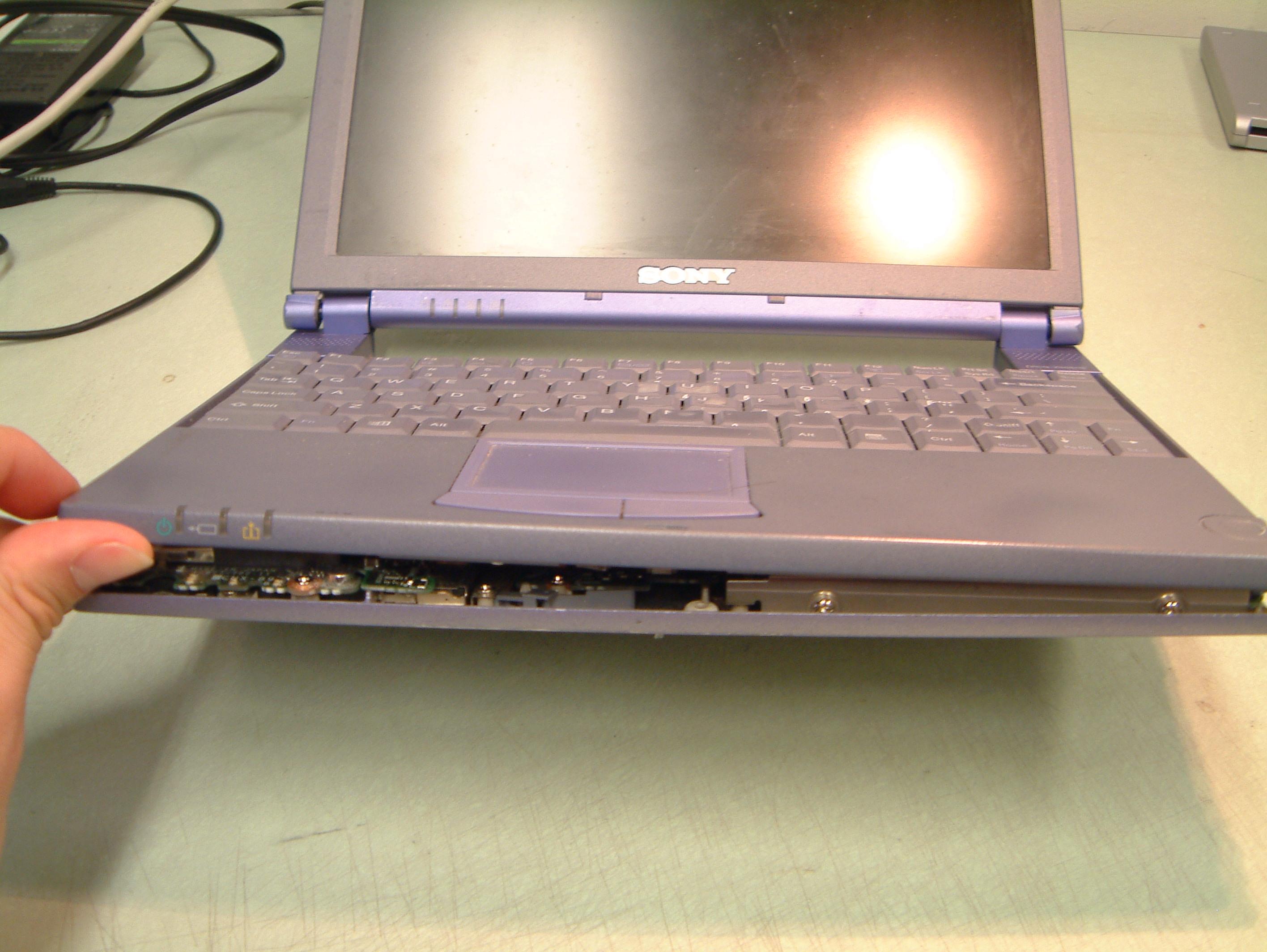

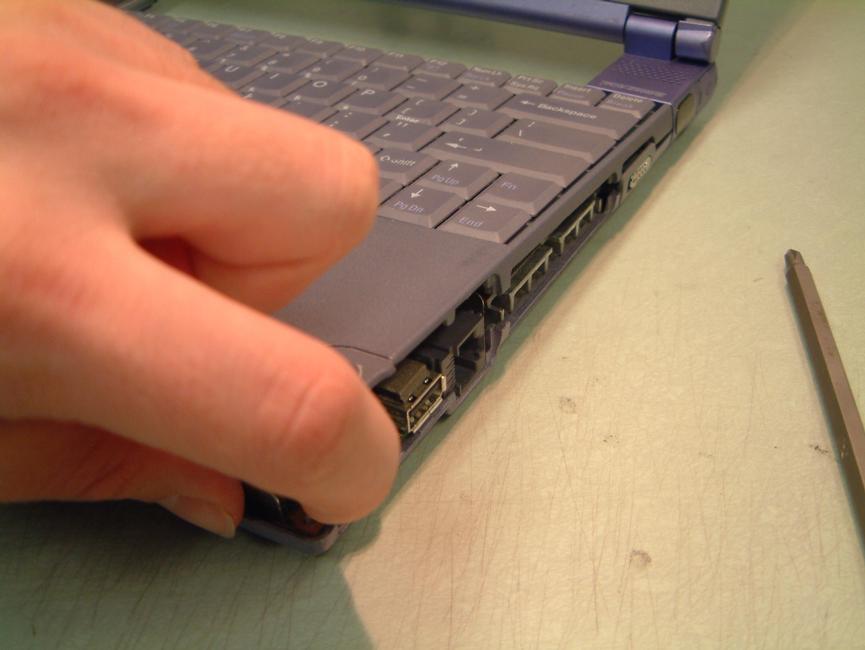

dscf2150.jpg (After taking bottom screws out, the cover only lifts an inch.)

LARGE

LARGE

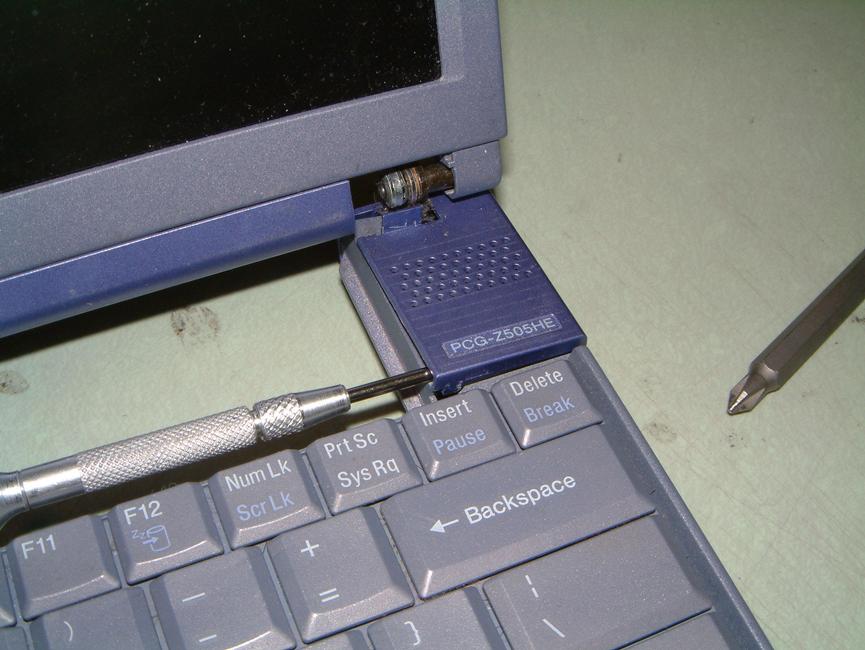

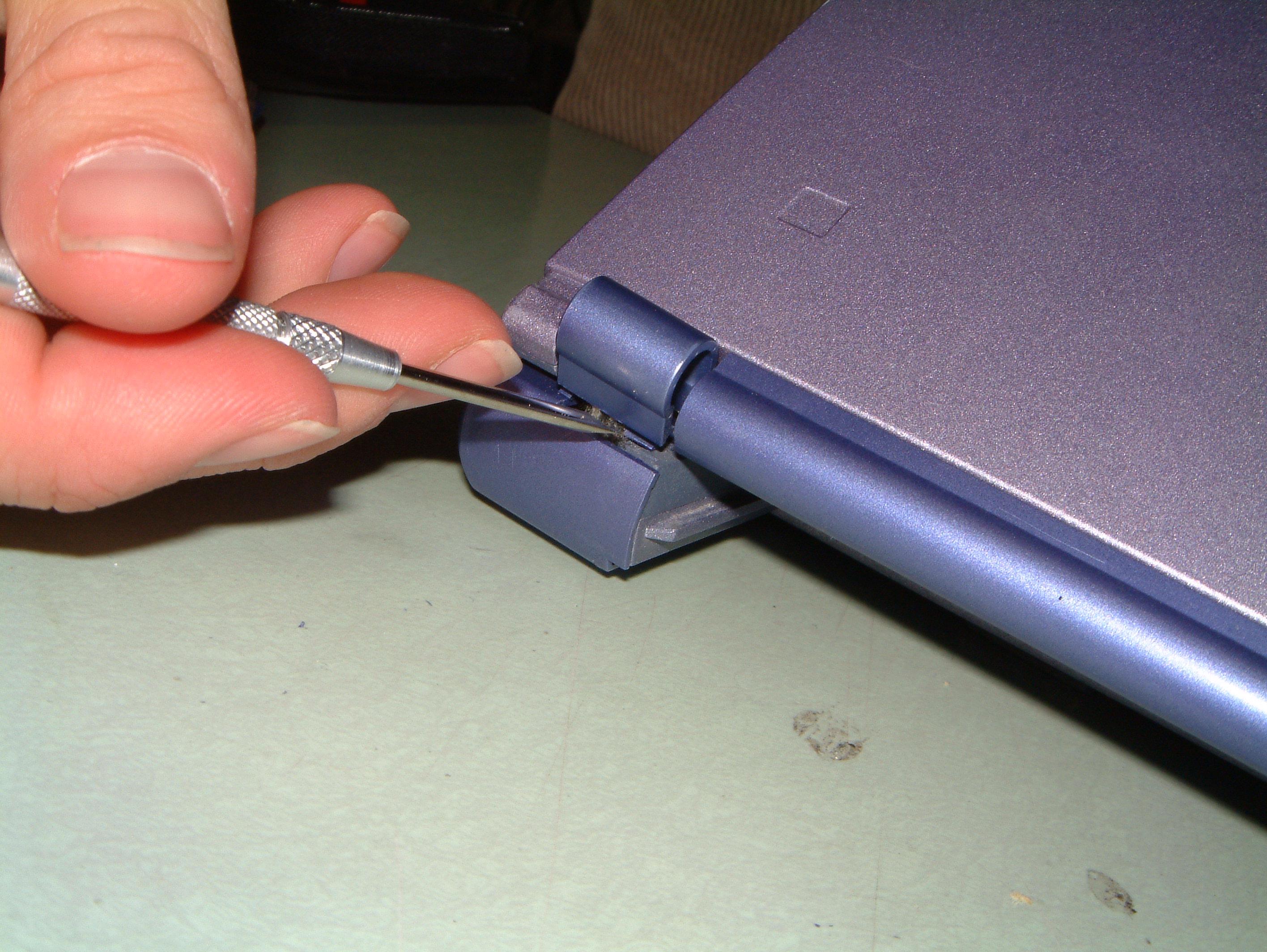

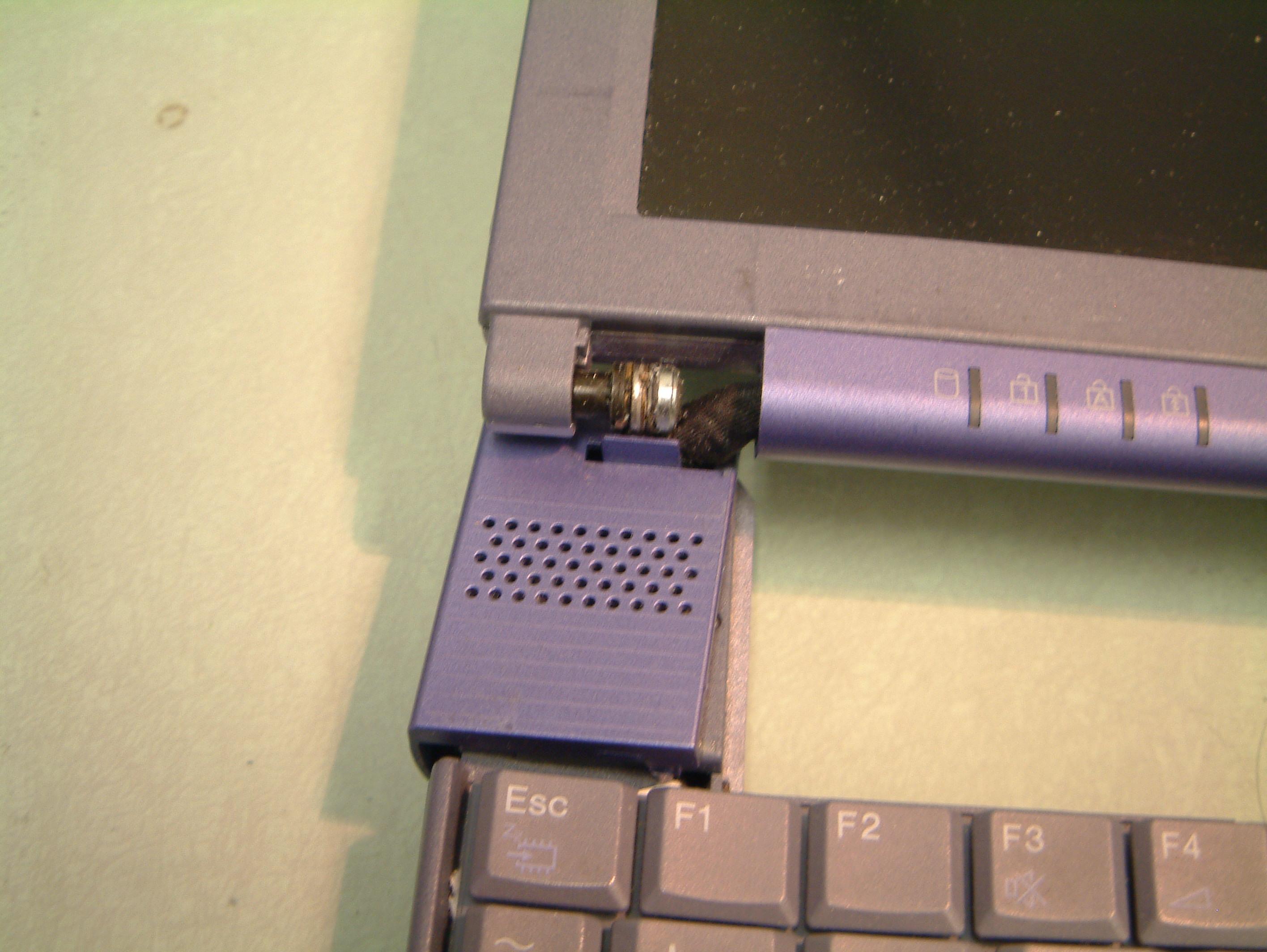

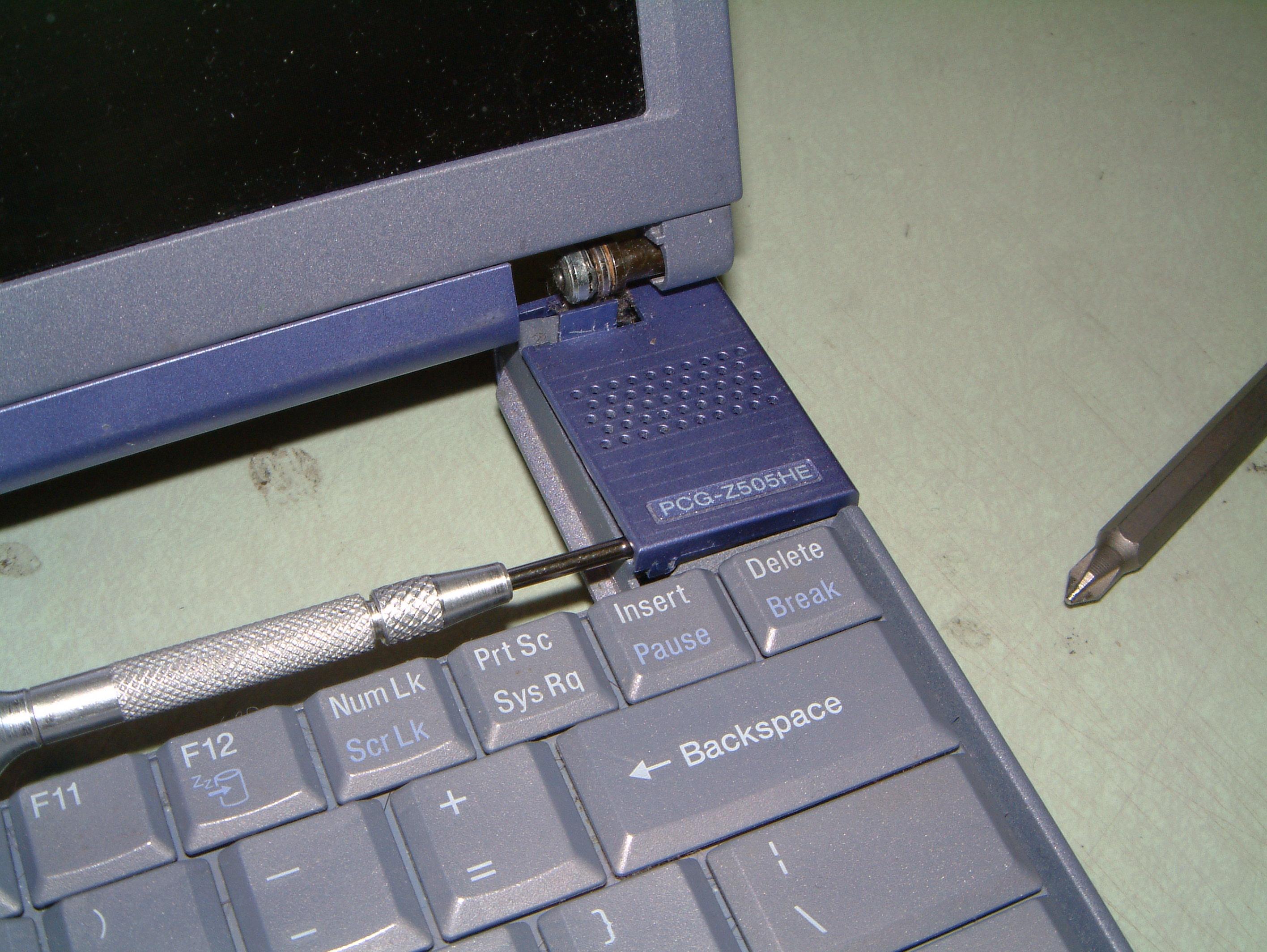

dscf2152.jpg (After removing the plastic on the hinges, the speaker cover can be popped off. )

LARGE

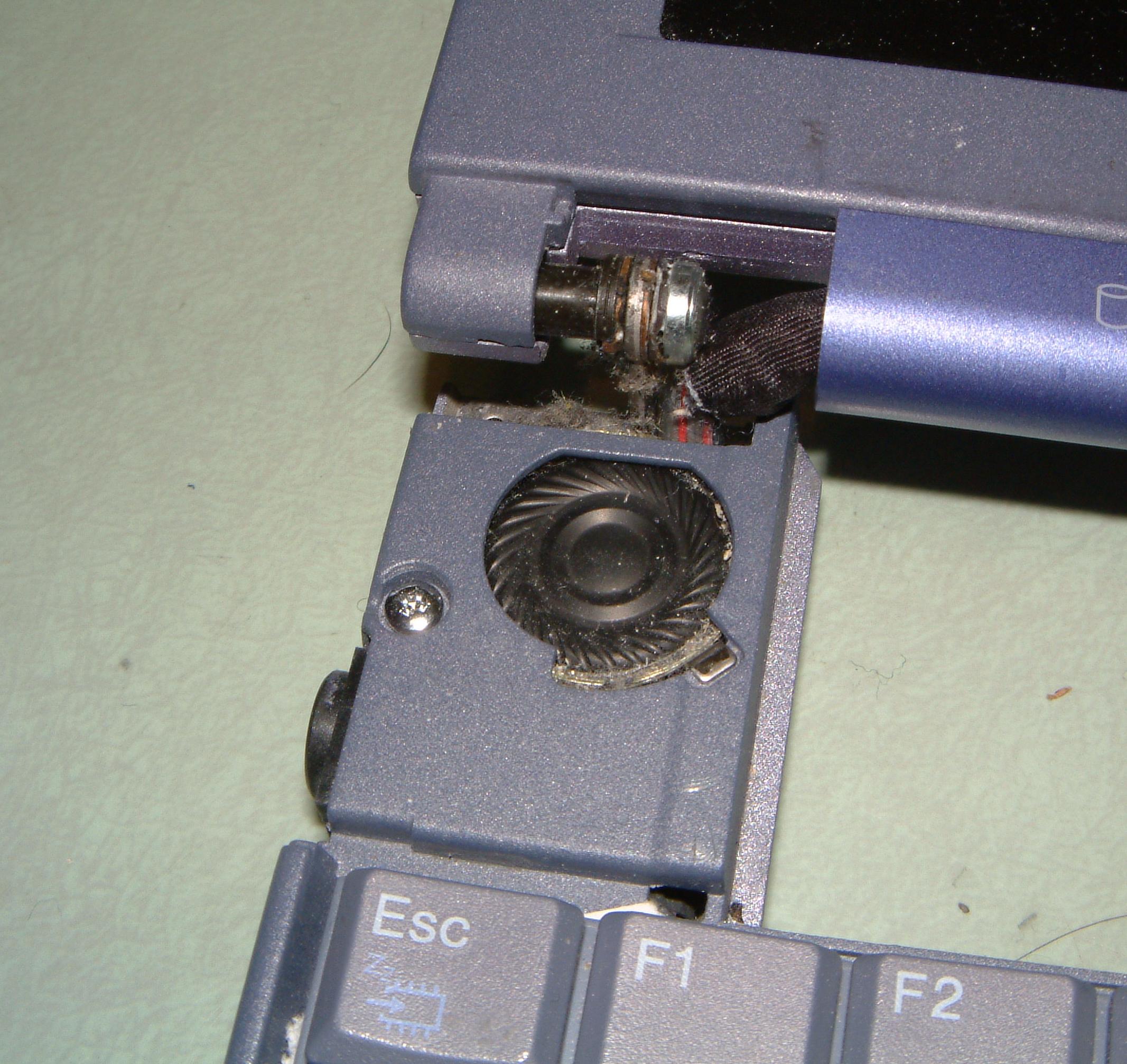

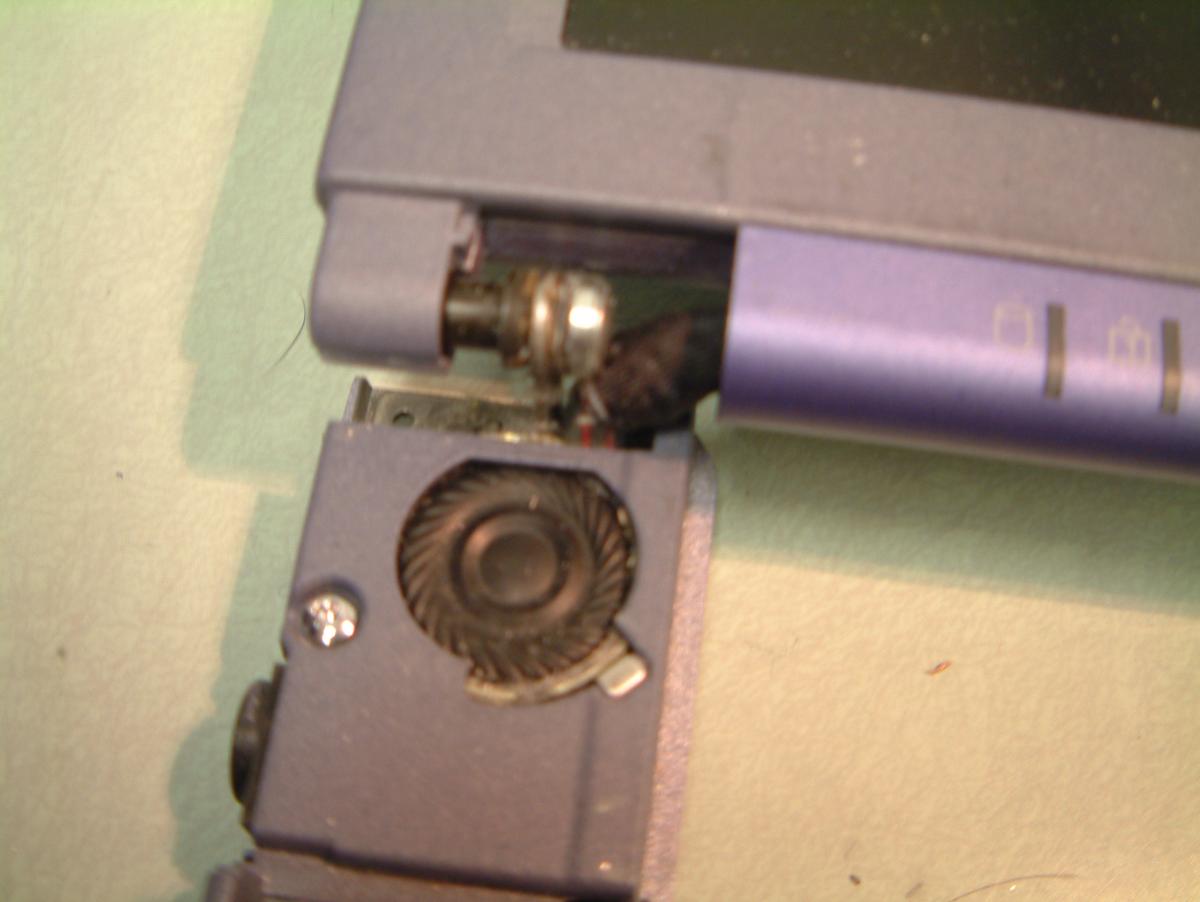

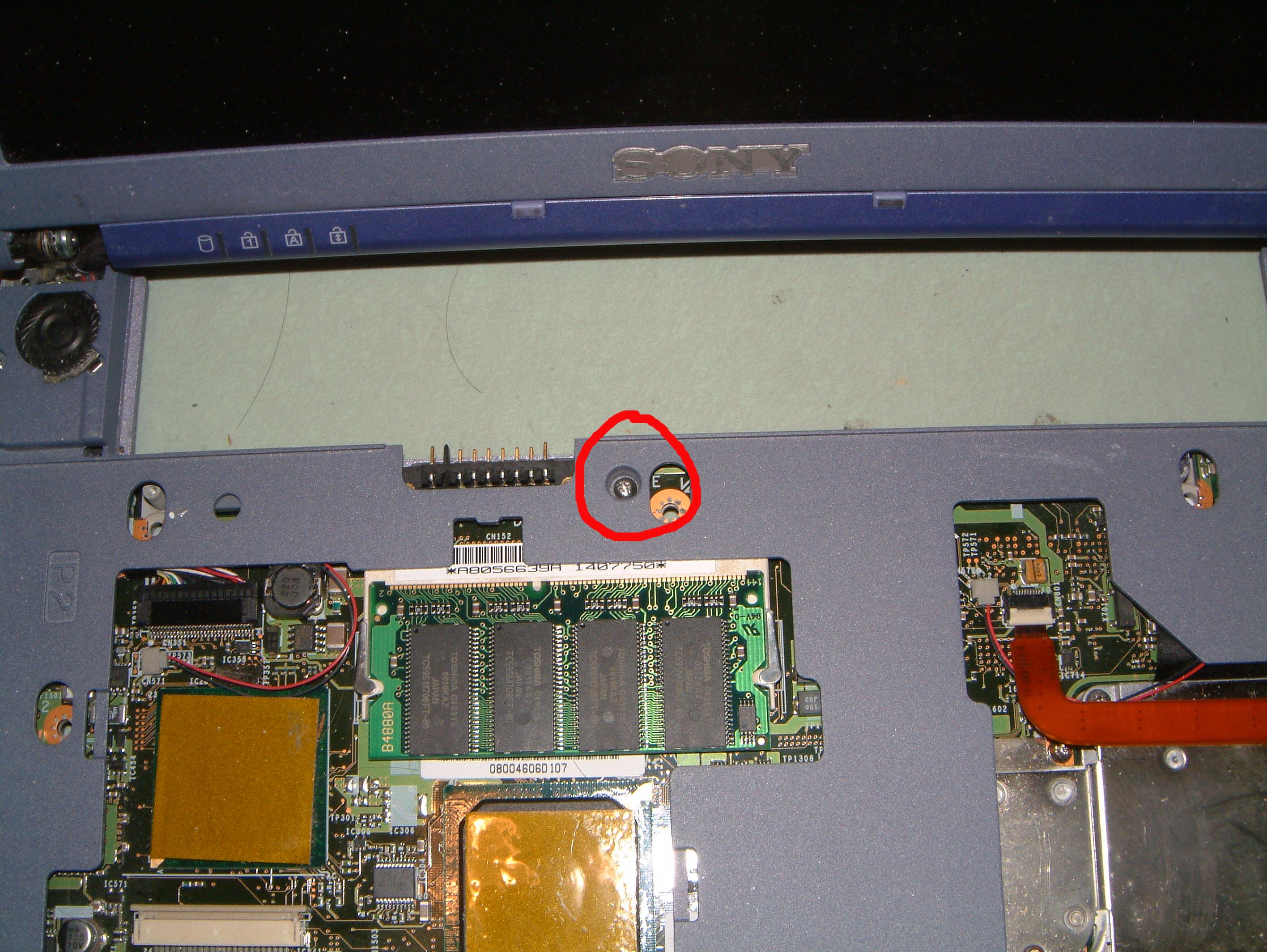

dscf2153.jpg (Speaker underneath, and a screw to its left, which must be removed.)

LARGE

LARGE

LARGE

LARGE

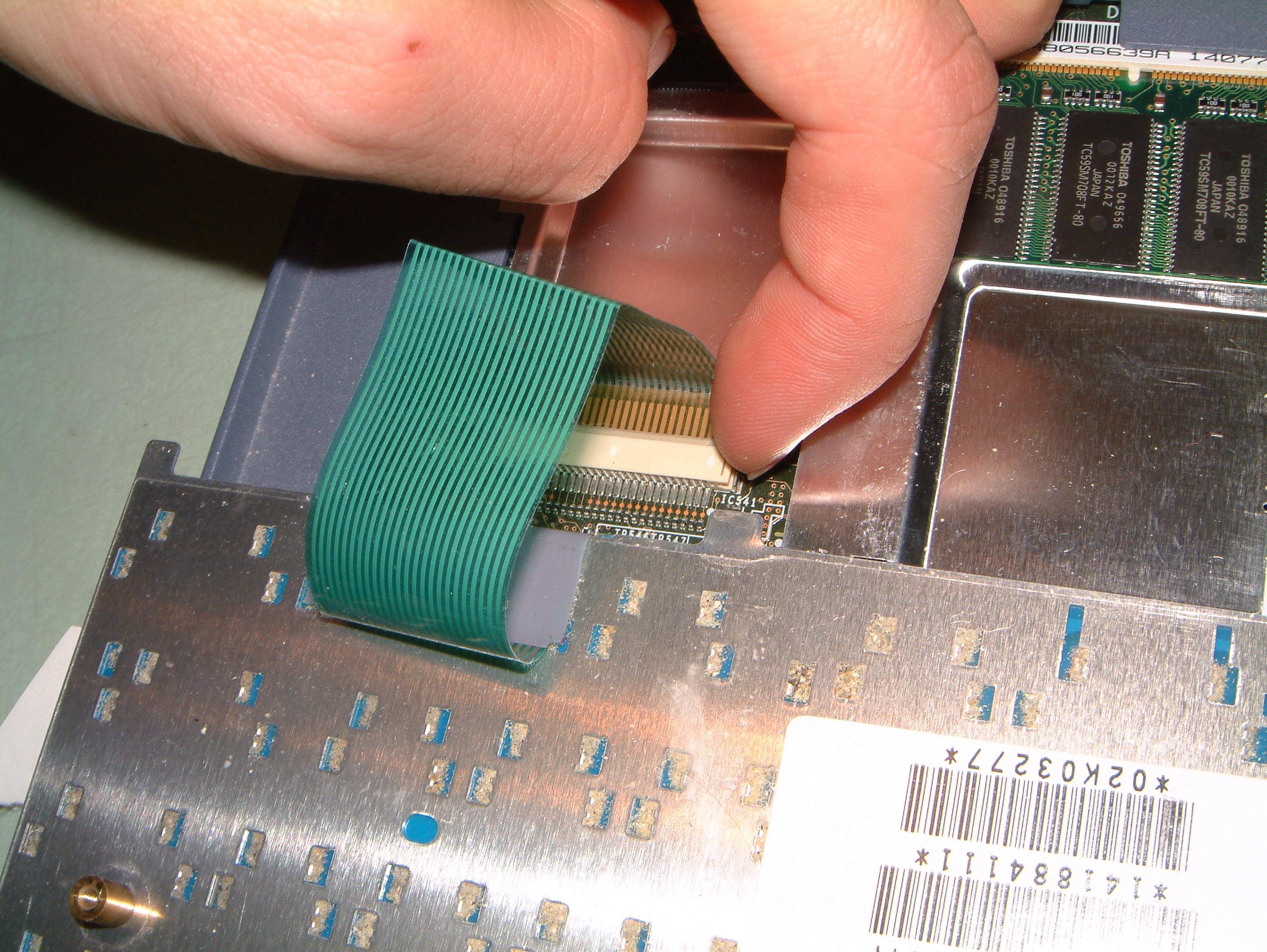

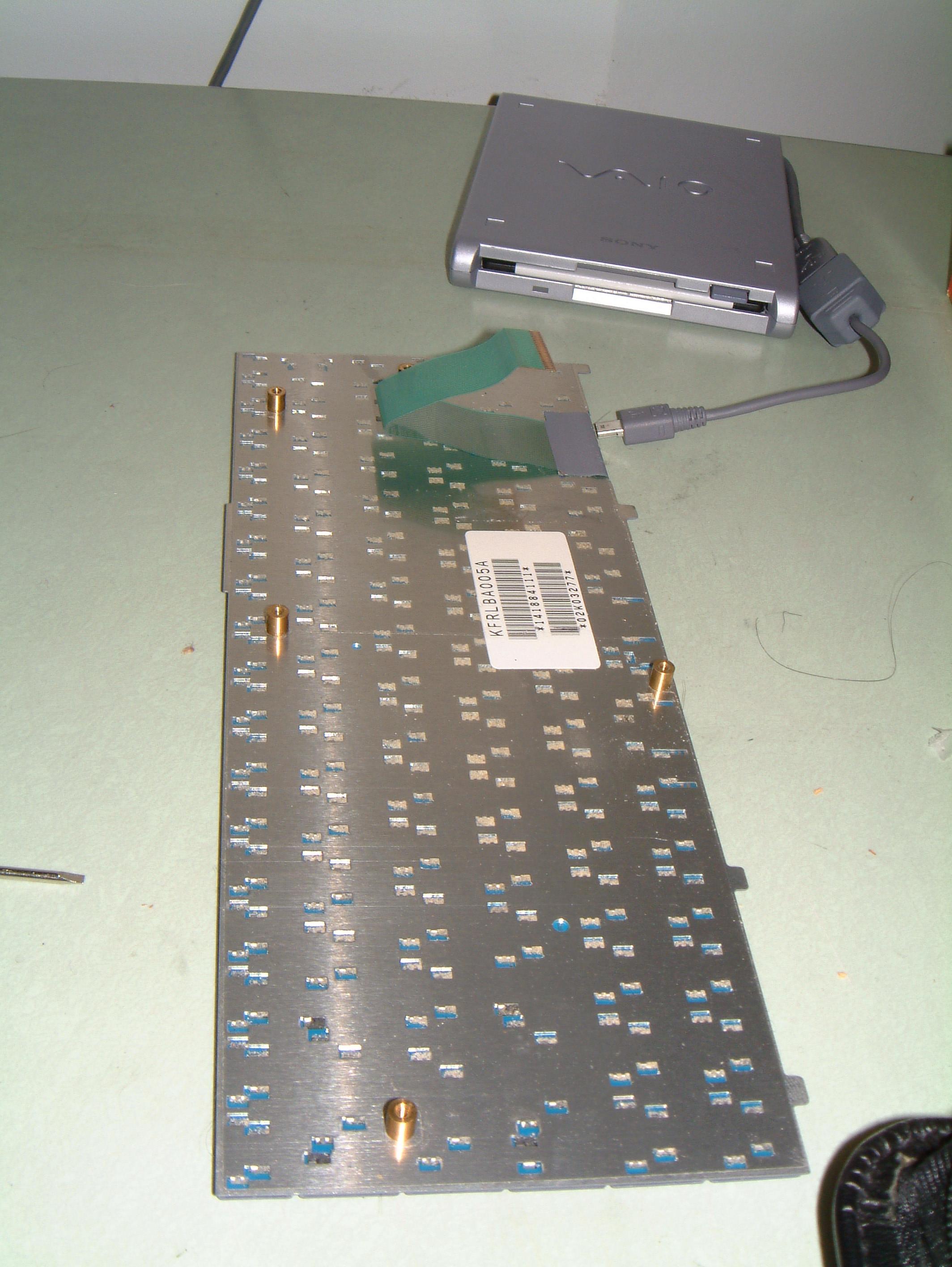

dscf2157.jpg (Removing the keyboard. Pull the lever back and the ribon detaches from the motherboard.)

LARGE

LARGE

LARGE

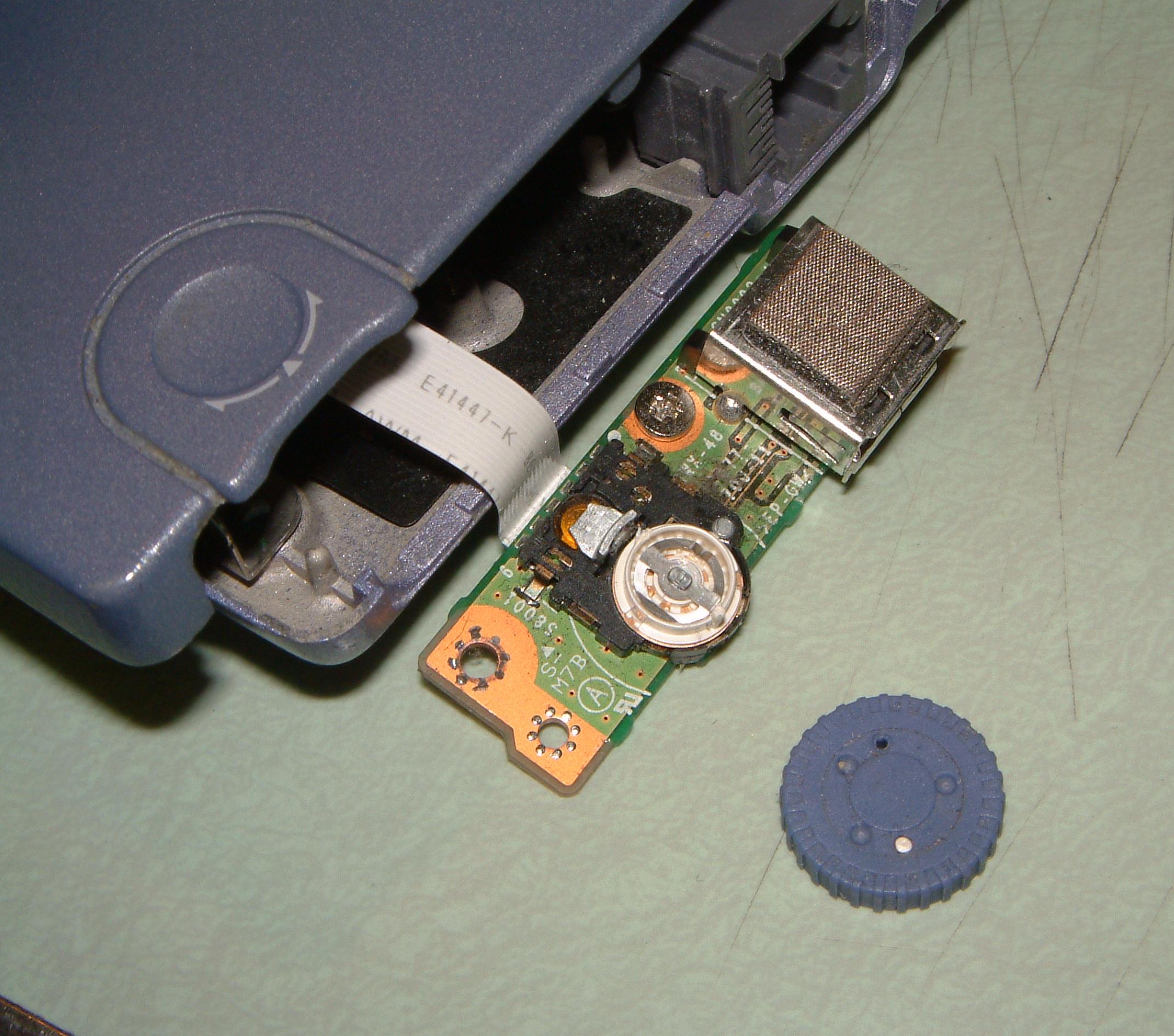

dscf2160.jpg (I busted off the jog dial, which I'm sick of because, when bumped, it wakes up the laptop from suspend! This frequently occurs when it is in my backpack. )

LARGE

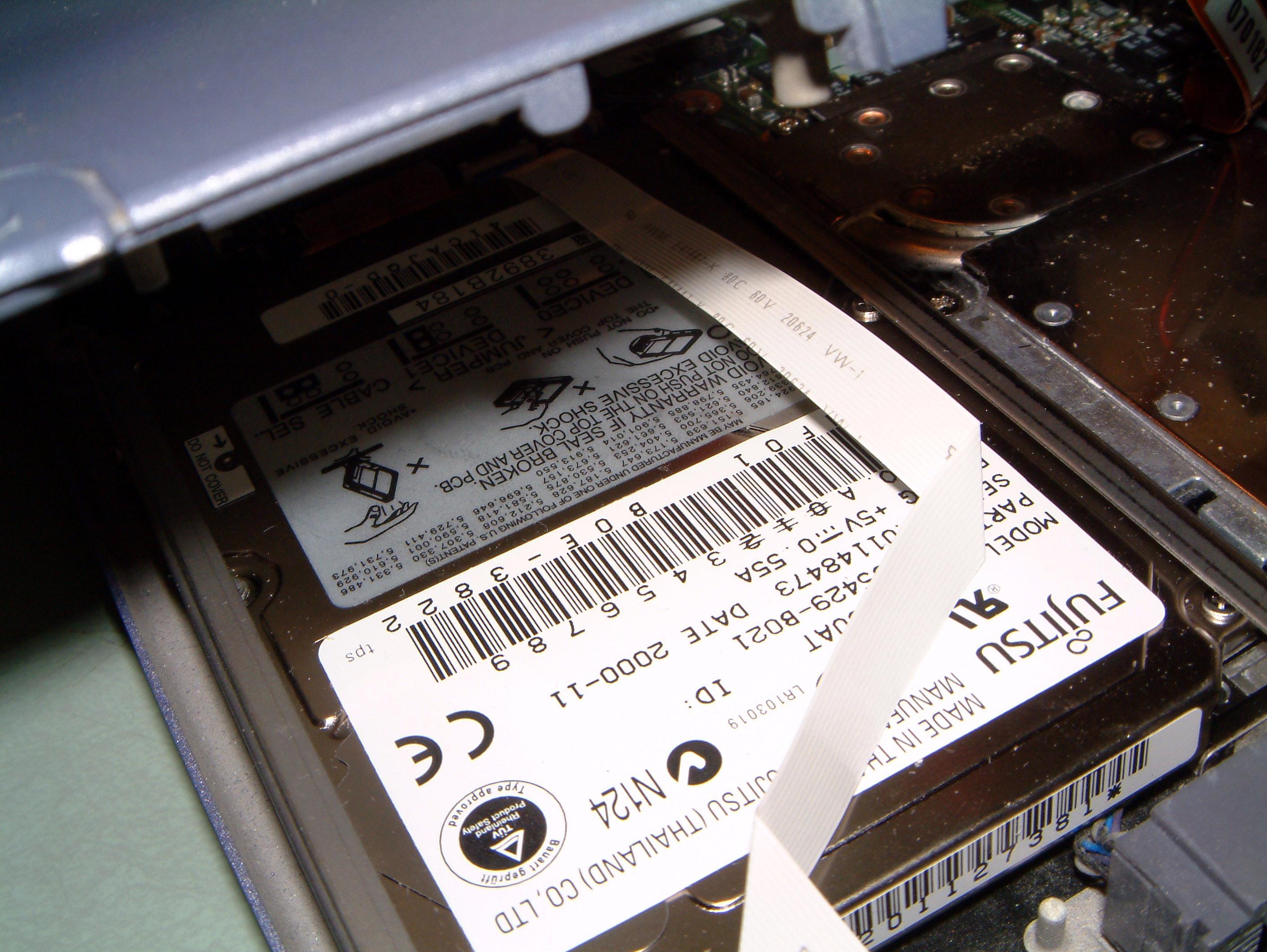

dscf2161.jpg (The old 10GB hellishly loud Fujitsu drive I installed a few weeks ago.)

LARGE

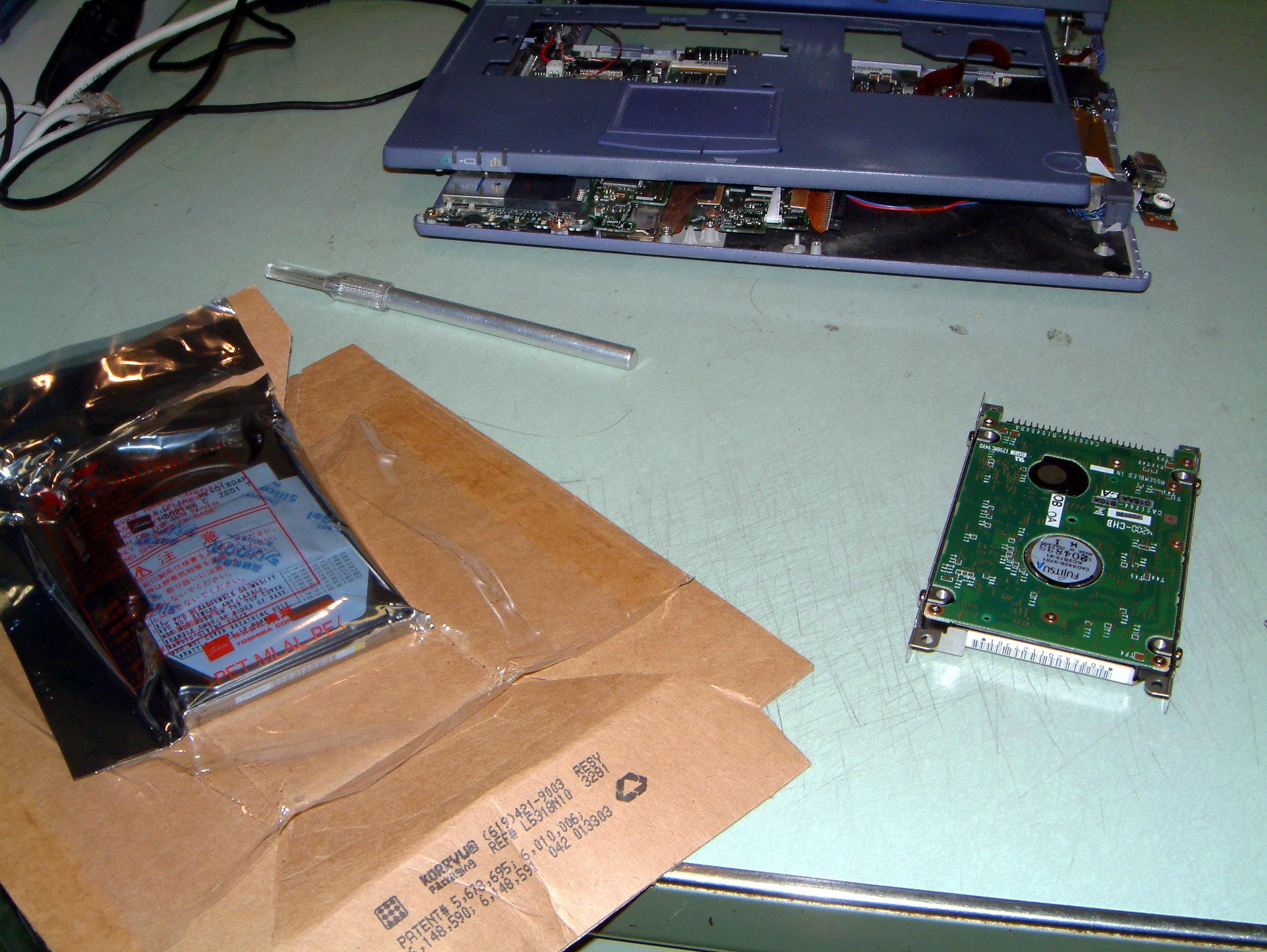

dscf2162.jpg (New hard drive, still in bag, and the old NOISY Fujitsu drive (which is not what comes with the VAIO, but which I replaced the VAIO's original Toshiba drive with it).)

LARGE

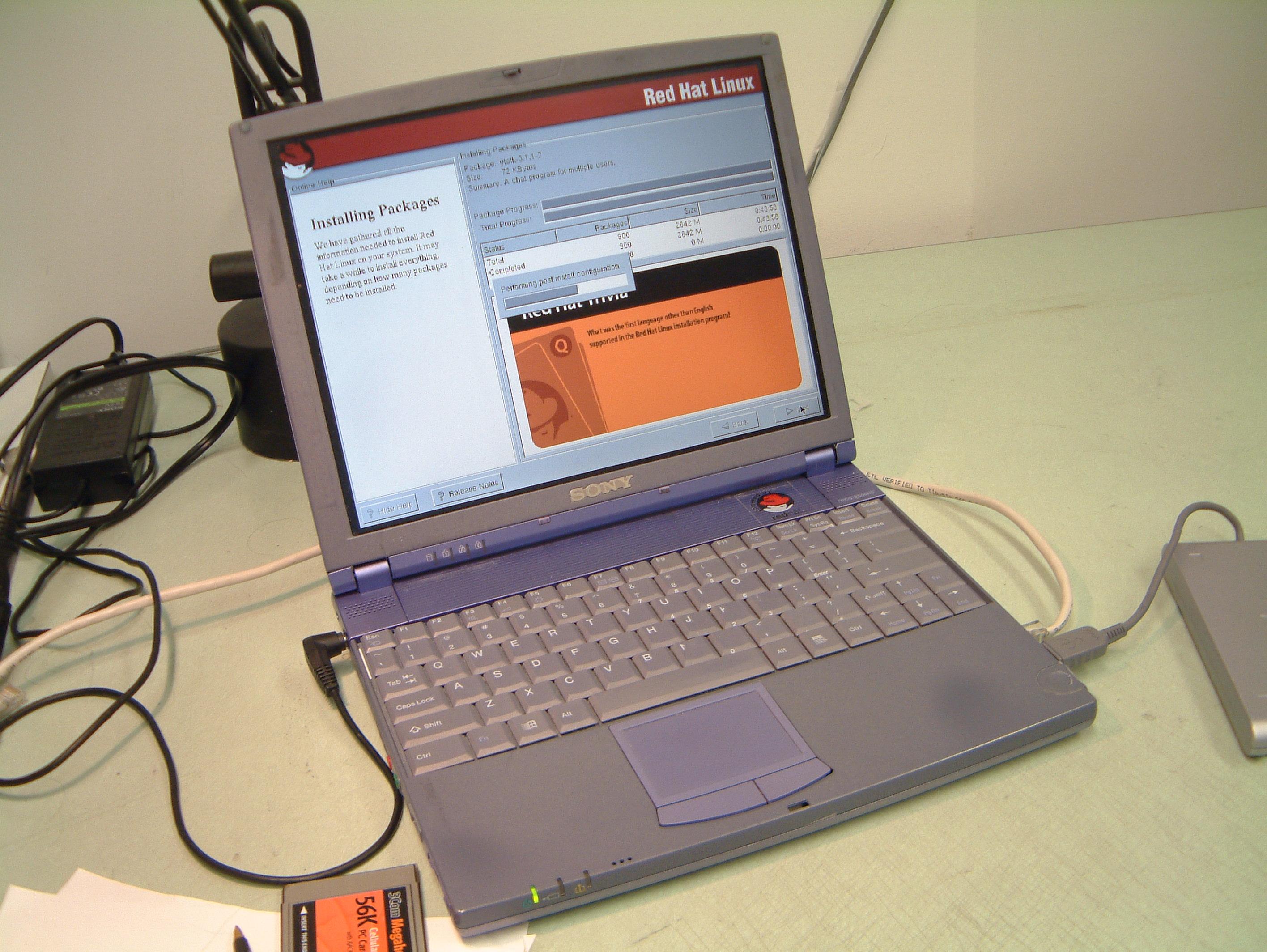

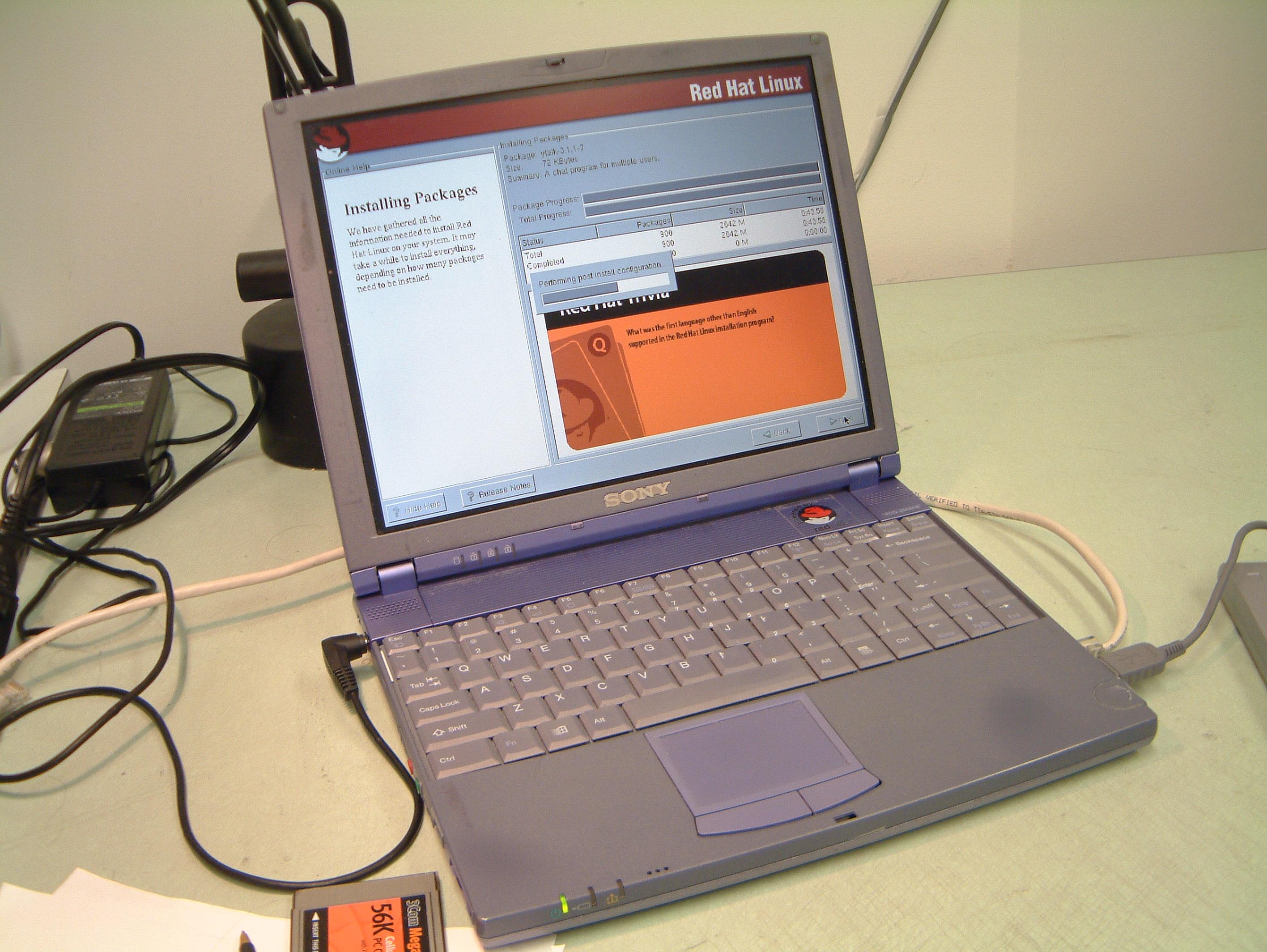

dscf2163.jpg (Back totogether, and installing Linux, with the new Toshiba MK4018 40GB 9.5mm 2.5inch drive.)
